SSH into a machine behind NAT

Time · ~5 min Level · Beginner Protocol · SSH (any TCP)

You want a shell on a machine that has no public IP — a box at the office, a Raspberry Pi at home, a server on a carrier-grade-NAT link — and you are on your own laptop, also behind NAT. Neither side can accept an inbound connection. With LRO that is fine: both agents dial out, and you SSH to a local port on your laptop that lands on the remote machine.

Roles for this task: the remote machine that runs sshd is the Client (the endpoint lives on it); your laptop is the Support (it opens the local port you ssh into). If those names feel inverted, see choosing the agent role. New to all this? Start with your first tunnel.

Confirm SSH is running on the remote machine
On the machine you want to reach, the SSH daemon should be listening locally — by default on port 22. Nothing about it needs to face the internet; LRO connects to it from the same machine.

$ ss -ltn | grep :22 # sshd listening on 127.0.0.1:22 or 0.0.0.0:22

The remote machine runs the LRO agent in Client mode and your laptop runs it in Support mode — register both as in your first tunnel if you have not yet.
Add the SSH endpoint on the client agent
In the panel, Endpoints → Create endpoint. Pick the client agent (the remote machine), name it e.g. Office SSH, and set target 127.0.0.1 and port 22.

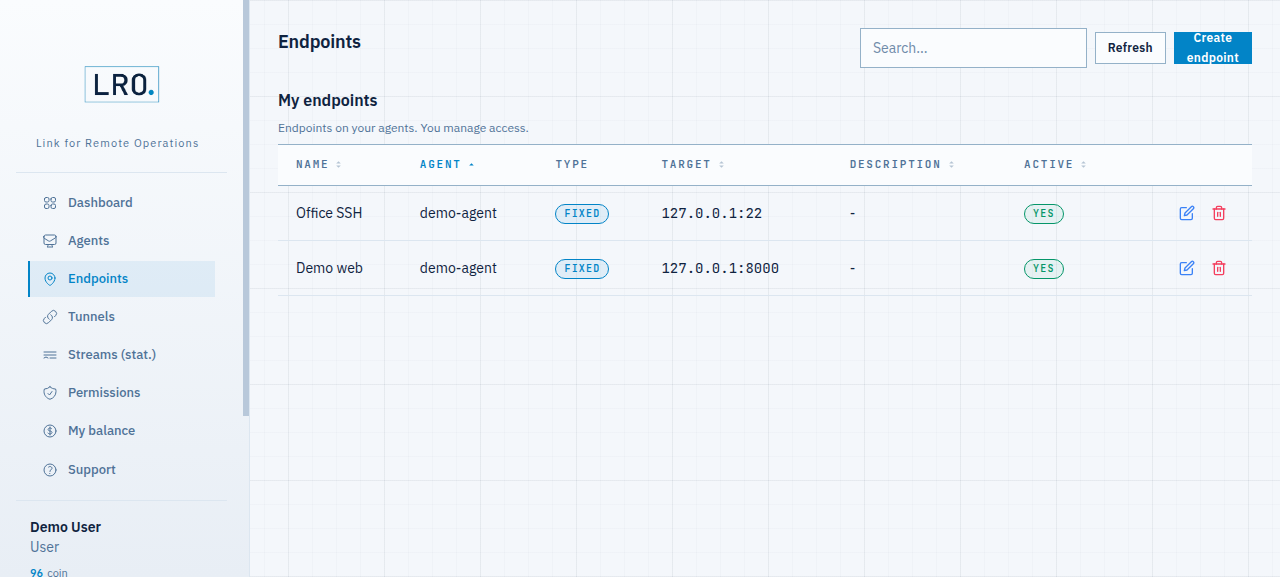

Fig 1. The SSH endpoint lives on the client agent — target 127.0.0.1:22.
Open a tunnel from your machine
Tunnels → Add tunnel. Choose your laptop as the support agent, pick the Office SSH endpoint, and set a listen port — anything free locally, e.g. 2222. Create it; it goes Active in a moment.

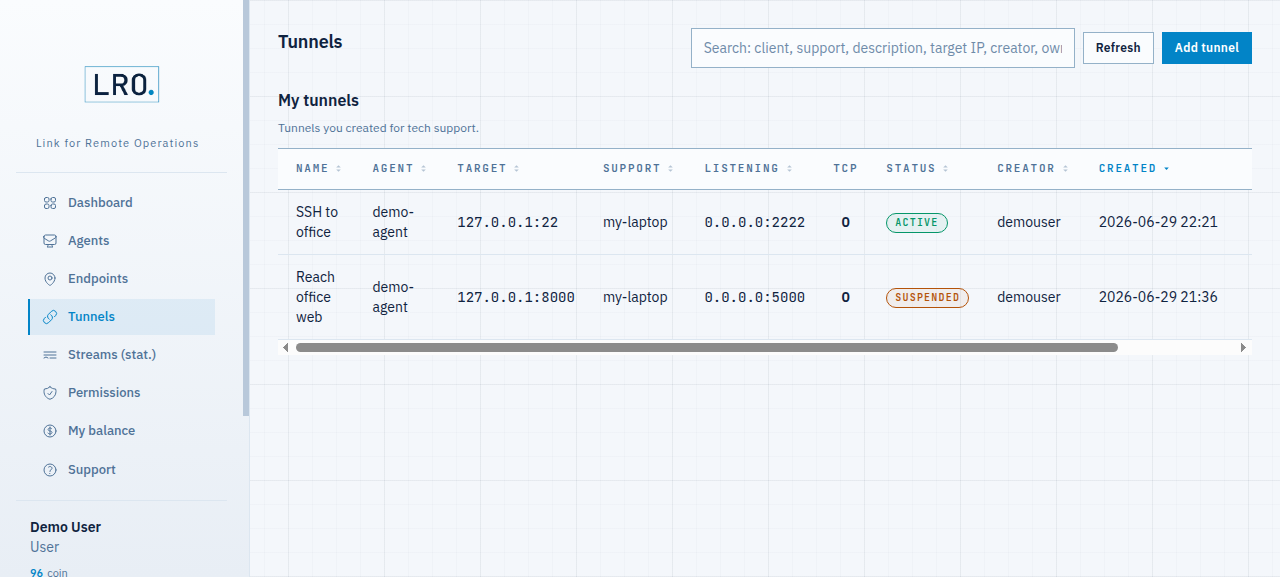

Fig 2. The active SSH tunnel — your machine listens on 2222 and forwards to the remote 127.0.0.1:22.
SSH to the local port
On your laptop, SSH to the listen port. The connection lands on the remote machine’s sshd through the encrypted tunnel:

$ ssh user@127.0.0.1 -p 2222

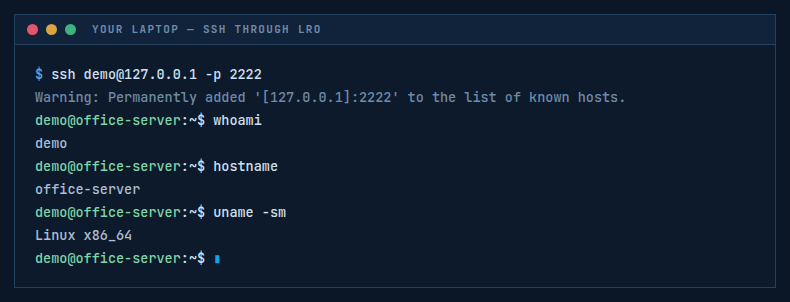

Fig 3. A real shell on the remote machine — over a port that only exists on your laptop.

Everything that rides on SSH works the same way, pointed at the local port:

$ scp -P 2222 file.tar.gz user@127.0.0.1:/tmp/ $ sftp -P 2222 user@127.0.0.1 $ rsync -e 'ssh -p 2222' -a ./dir user@127.0.0.1:/srv/

To avoid typing the port, add a host block to ~/.ssh/config:

# ~/.ssh/config Host office HostName 127.0.0.1 Port 2222 User user

… then just ssh office.

Notes

Both sides behind NAT — no problem. Each agent makes an outbound connection only; nothing is exposed to the internet.
Lock it down — set Allowed addresses (ACL) on the tunnel to limit who on your machine can use the listener, and keep SSH key authentication on the remote host.
Any TCP service — the same three steps reach RDP (3389), a database, or a web admin panel; only the target port changes.
